Why MinSand improves mould and casting quality

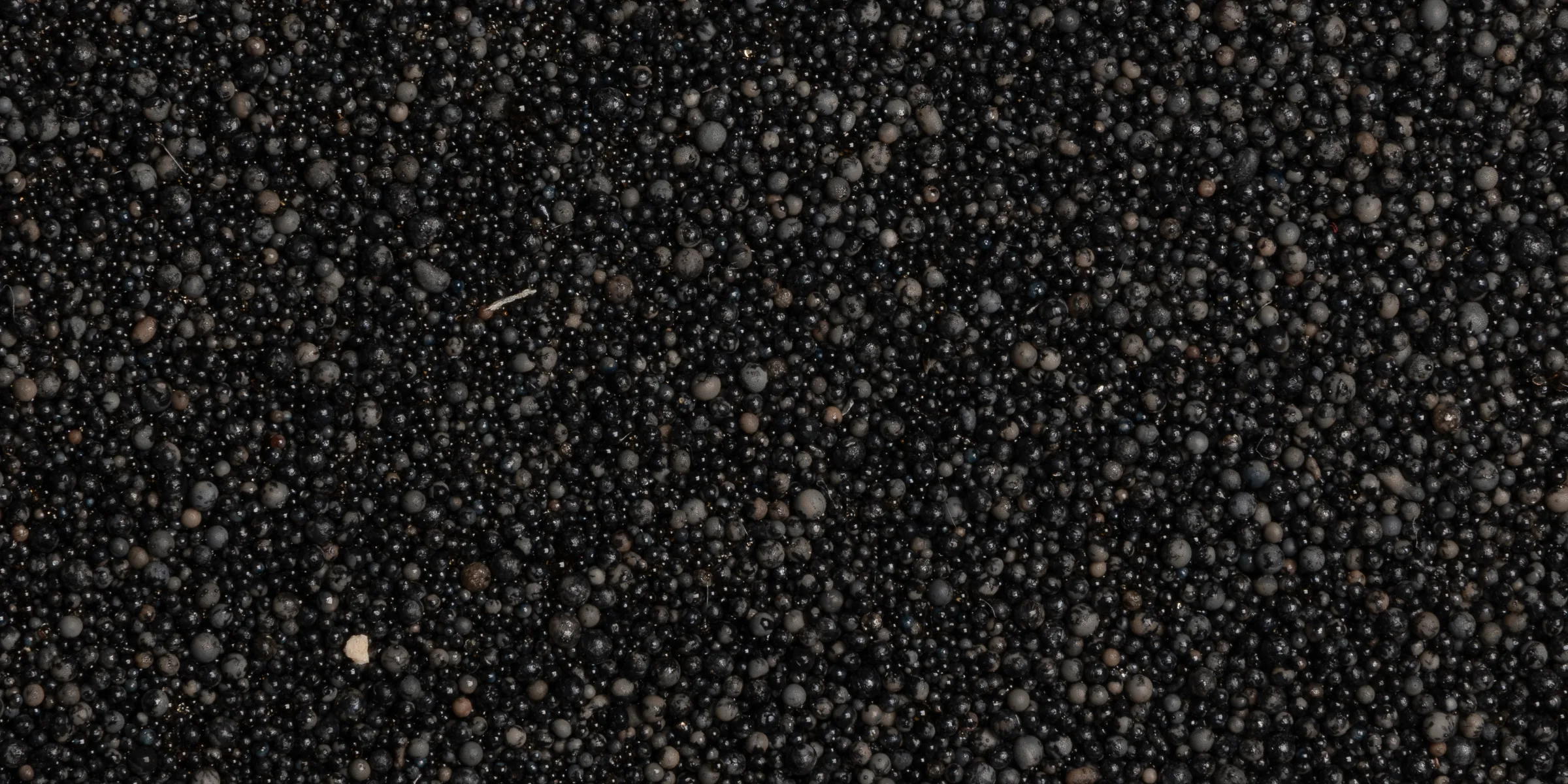

MinSand is a synthetic ceramic sand produced via melting high-purity bauxite in an electric arc furnace, then rapidly cooling to form nearly perfect spherical beads. The result is a material with uniform grain size, excellent thermal stability, hardness, and flowability. These characteristics make it ideal for producing moulds and cores with high dimensional precision and smooth surface finishes. In many foundry processes, irregular grain shapes or inconsistent particle sizes lead to defects – rough surfaces, veining, or poor flow around intricate forms. A rounded, consistent grain like MinSand mitigates these issues.
While its origins lie in applications requiring high thermal resistance, MinSand’s advantages are increasingly relevant beyond only extreme temperature contexts. In sectors such as precision casting, non-ferrous foundry work, tooling, and even in certain coatings or abrasives, the surface finish, mould integrity, and consistency are key. MinSand’s well-controlled particle shape and purity provide benefits whenever the appearance, tolerance, or finishing work are valued.
Enhancing casting quality and reducing defects
In foundry applications, one of the biggest challenges is achieving smooth, clean surfaces right off the mould. Uneven sand grains, sharp edges, or mixed sizes can cause defects like surface roughness, sand burn-on, penetration, or metal wash. MinSand, with its spherical bead structure and narrow grain size distribution, enables better packing and flow in moulds. This reduces voids and weak points, leading to better reproduction of fine details, sharper edges, and smoother surfaces.
Because MinSand beads can flow more freely, moulds fill more completely, especially around complex cores. This improves compaction and reduces post-casting finishing work (grinding, polishing, machining). Lowering the need for surface correction after casting saves time and cost. In addition, smoother surfaces can reduce material wastage (metal or coating excess) and improve aesthetic or functional attributes – whether for automotive parts, decorative castings, or exposed components.
Broader applications: more than just heat
Although its thermal stability is well suited to high-temperature environments (for example, metals casting, refractories, ceramic moulds), MinSand brings value in applications where heat is not the central factor but where surface finish, flow, purity, and consistency matter.
For example, in moulds for plastics or resin casting, where the mould material or coating can pick up defects from the sand base, using a sand with well-rounded particles can lead to smoother mould surfaces and a better finish on the moulded parts. Similarly, in abrasive blasting, fine finishing work, or even in certain filtration media, materials that are clean, free of sharp edges or “fines” that cause uneven wear or clogging are preferred. MinSand’s chemical purity helps here by reducing the likelihood of unwanted chemical reactions or impurities showing in the final surface.
Another growing area is in additive manufacturing or precision tooling where sand or ceramic powders are used as part of moulds or support materials. In such applications, shape control, uniform grain behaviour under pressure or flow, and low impurity content contribute strongly to predictability, mould life, and final surface quality.
Practical tips for using MinSand to optimise finish
To get the best results with MinSand, several practical points are worth considering:
- Grain size and grading : Even with spherical particles, getting the right size for your mould or core is important. Finer grains improve detail and surface smoothness; coarser grains allow better permeability and drainage of gases.
- Binder choice : The binder used together with MinSand in moulds or cores will affect surface texture. Compatible binders that cure cleanly and evenly complement the smooth base provided by MinSand beads.
- Mould filling and compaction : Because MinSand flows so well, moulds need to be filled in a manner that avoids trapping air. Good packing or vibration techniques help ensure the beads are tightly arranged, avoiding gaps or weak spots that could affect the finish.
- Surface coatings or finishes : In many casting or moulding processes, a coat or wash layer is applied. If the underlying mould is smooth and uniform (as is more likely with MinSand), these coatings adhere more evenly and finish more cleanly.
- Cleaning and reuse : Where possible, reclaiming or cleaning mould sands or beads can be more effective with materials that are durable and chemically stable. MinSand’s hardness and resistance to damage can make it more reusable, helping overall process cost and environmental responsibility.
Advantages: efficiency, quality, and responsibility
Using MinSand can lead to efficiencies in both production time and cost. Reduced finishing work, fewer rejects, smoother surface qualities – all contribute to less labour, less material waste, and tighter tolerances. For industries where aesthetics matter (such as decorative metal work, architectural castings, or visible components), the improved finish directly enhances product value.
From an environmental responsibility perspective, the purity and stability of MinSand help reduce environmental contaminants in waste sand or in casting by-products. Higher recoverability or reuse of mould sand or cores is also more achievable with durable, inert materials. As manufacturers increasingly look to reduce waste, improve lifecycle impacts, and meet environmental regulation, materials like MinSand provide a competitive edge.
Future directions and wider industry relevance
As manufacturing, casting, tooling, and moulding sectors evolve, there is greater demand for materials that enable precision, cleaner finishes, and lower environmental impact. Sectors such as electric vehicle parts, consumer goods with metal or ceramic components, architectural hardware, decorative objects, tooling, and precision instruments all consider surface finish and material behaviour under stress or processing.
MinSand’s features – sphericity, consistency, thermal and chemical stability – position it well to play a role beyond traditional foundry work. Whether in producing cores or moulds for metal, or as a clean base for coatings, resins, or surface-sensitive applications, its advantages make it a material worth specifying when finish, detail, and reliability matter.
Our technical team can help you select the right grade of MinSand for your specific application, balancing trade-offs between detail, cost, and performance. Contact us to learn more or visit the MinSand product page for deeper technical specs. Visit our YouTube channel for practical demonstrations of our products, application insights, and expert tips.
