Dynamic structures: Using MagnaDense for bridge counterweights & stability
Why mass matters in modern bridge engineering
Bridge design is increasingly driven by a combination of structural efficiency, durability, and dynamic performance. As spans become longer and structures more complex, engineers must carefully control forces such as tension, compression, vibration, and wind loading. One of the less visible but critical design elements in this balance is counterweighting and ballast systems. These systems help stabilise moving structures such as bascule bridges, drawbridges, and suspended components. In these applications, material density becomes a key design parameter.
This is where high-density aggregates such as MagnaDense play a crucial role.
What is MagnaDense and why is it used in structural applications?
MagnaDense is a high-density iron ore-based aggregate (magnetite) produced by LKAB Minerals. It has a significantly higher specific gravity than conventional aggregates such as Limestone or gravel.
This allows engineers to achieve higher mass in a smaller volume, which is particularly important where space is restricted or where structural geometry cannot be altered.
In bridge engineering, this translates into:
- compact counterweight systems
- improved balance in moving spans
- reduced structural footprint
- more efficient use of design space
How MagnaDense improves bridge counterweights

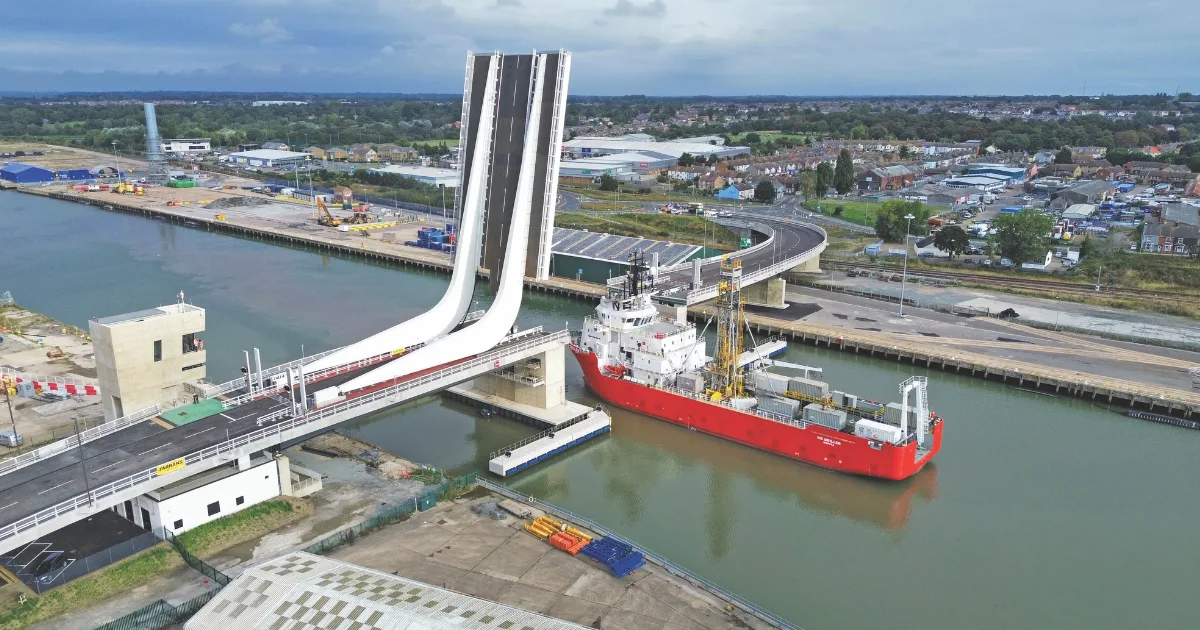

In movable bridge systems, counterweights are essential for balancing the structure during lifting and lowering operations.
Using MagnaDense allows designers to:
- reduce counterweight volume while maintaining required mass
- achieve more precise balancing due to consistent density
- optimise mechanical systems such as hydraulic actuators
- improve long-term stability of moving components
Because the material is dense and consistent, it helps reduce variability in balancing calculations, which is critical for operational safety and long-term performance.
Stability in dynamic structural systems
Beyond counterweights, MagnaDense is also used in applications where stability under dynamic loading is required.
This includes:
- vibration damping in large structures
- ballast in foundations exposed to movement or water forces
- stabilisation of offshore and marine-linked infrastructure
The high specific gravity of MagnaDense allows engineers to introduce significant stabilising mass without increasing structural footprint or redesigning core geometry.
Why density is more important than volume in modern engineering
Traditional aggregates increase weight only by increasing volume, which can create design constraints. High-density aggregates change this relationship by decoupling mass from volume.
This enables:
- more compact engineering solutions
- reduced structural congestion
- improved design flexibility in confined environments
- better performance in space-limited infrastructure
For bridge designers, this is particularly valuable where mechanical systems must operate within tight spatial tolerances.
Applications beyond bridges
While bridge counterweights are a key use case, MagnaDense is also widely used in:
- radiation shielding concrete
- offshore ballast systems
- pipeline weight coating
- heavy industrial foundations
Its role across these sectors highlights its importance as a high-performance engineered aggregate rather than a conventional construction material.
Supporting modern infrastructure design
As infrastructure becomes more complex and performance-driven, materials like MagnaDense allow engineers to solve problems that cannot be addressed with standard aggregates.
Its contribution is not only structural but also functional – enabling safer, more efficient, and more compact engineering solutions.
In bridge engineering, stability and balance are essential to safe operation. By using high-density aggregates such as MagnaDense, engineers can achieve precise counterweighting and improved dynamic stability without increasing structural size or complexity.
As infrastructure demands continue to evolve, engineered density will remain a key factor in future structural design. To learn more about MagnaDense, visit the product page or contact the LKAB Minerals technical team. You can also follow LKAB Minerals on LinkedIn for the latest product updates, case studies, and industry insights.
